NEW QUESTION # 24
Which two statements are true about a pure IP fabric? (Choose two.)
- A. Devices in an IP fabric function as Layer 3 routers.
- B. An IP fabric does not support Layer 2 protocols.
- C. An IP fabric supports Layer 2 VLANs.
- D. Devices in an IP fabric must be connected to a fabric controller.
Answer: A,B
Explanation:
* Understanding Pure IP Fabric:
* A pure IP fabric is a network design where all devices operate at Layer 3, meaning that each device in the fabric is a router that makes forwarding decisions based on IP addresses.
* Layer 2 Support:
* In a pure IP fabric, traditional Layer 2 protocols such as Spanning Tree Protocol (STP) or VLANs are not supported. Instead, the network relies entirely on Layer 3 routing protocols to manage traffic between devices.
* Routing Functionality:
* Since devices in an IP fabric operate as Layer 3 routers, they handle IP routing and provide network services based on IP addresses, not on MAC addresses or Layer 2 switching.
Conclusion:
* Option A:Correct-Devices in an IP fabric function as Layer 3 routers.
* Option D:Correct-A pure IP fabric does not support traditional Layer 2 protocols, making it a purely routed environment.
NEW QUESTION # 25
Exhibit.

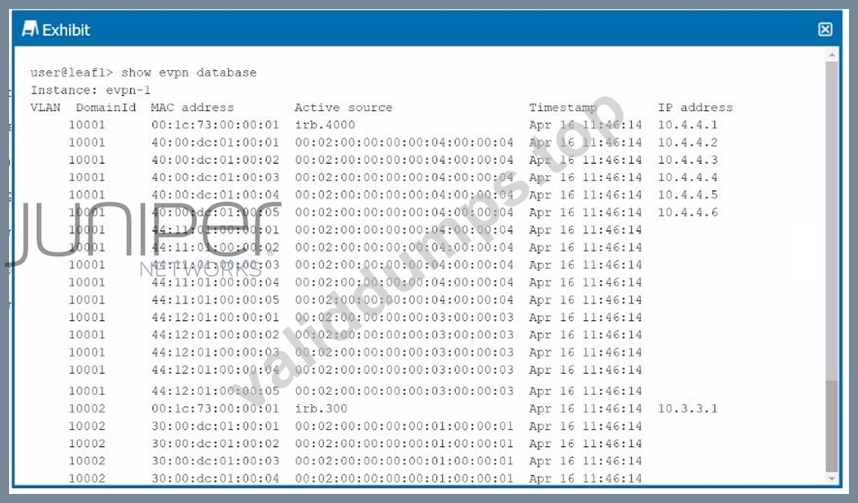

The exhibit shows the truncated output of the show evpn database command.
Given this output, which two statements are correct about the host with MAC address 40:00:dc:01:00:04?
(Choose two.)
- A. The host is located on VN110002.
- B. The host is originating from irb.300.
- C. The host is assigned IP address 10.4.4.5.
- D. The host is originating from an ESI LAG.
Answer: C,D
Explanation:
* Understanding the Output:
* The show evpn database command output shows the MAC address, VLAN, active source, timestamp, and IP address associated with various hosts in the EVPN instance.
* Analysis of the MAC Address:
* Option A:The MAC address 40:00:dc:01:00:04 is associated with the IP address 10.4.4.5, as indicated by the output in the IP address column. This confirms that this host has been assigned the IP 10.4.4.5.
* Option D:The active source for the MAC address 40:00:dc:01:00:04 is listed as 00:02:00:00:00:
04:00:04:00:00:04:00:04, which indicates that the host is connected via an ESI (Ethernet Segment Identifier) LAG (Link Aggregation Group). This setup is typicallyused in multi-homing scenarios to provide redundancy and load balancing across multiple physical links.
Conclusion:
* Option A:Correct-The host with MAC 40:00:dc:01:00:04 is assigned IP 10.4.4.5.
* Option D:Correct-The host is originating from an ESI LAG, as indicated by the active source value.
NEW QUESTION # 26
Exhibit.

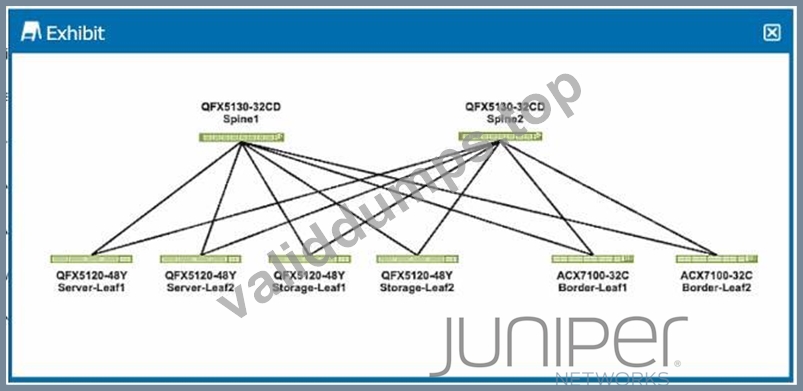

You are deploying a VXLAN overlay with EVPN as the control plane in an ERB architecture.
Referring to the exhibit, which three statements are correct about where the VXLAN gateways will be placed?
(Choose three.)
- A. Only the border and leaf devices will have L3 VXLAN gateways.
- B. All leaf devices will have L3 VXLAN gateways.
- C. Only the spine devices will have L2 VXLAN gateways.
- D. Spine devices will have no VXLAN gateways.
- E. All leaf devices will have L2 VXLAN gateways.
Answer: B,D,E
Explanation:
* Understanding ERB Architecture:
* ERB (Edge Routed Bridging) architecture is a network design where the routing occurs at the edge (leaf devices) rather than in the spine devices. In a VXLAN overlay network with EVPN as the control plane, leaf devices typically act as both Layer 2 (L2) and Layer 3 (L3) VXLAN gateways.
* Placement of VXLAN Gateways:
* Option B:All leaf devices will have L2 VXLAN gateways to handle the bridging of VLAN traffic into VXLAN tunnels.
* Option C:All leaf devices will also have L3 VXLAN gateways to route traffic between different VXLAN segments (VNIs) and external networks.
* Option E:Spine devices in an ERB architecture generally do not function as VXLAN gateways.
They primarily focus on forwarding traffic between leaf nodes and do not handle VXLAN encapsulation/decapsulation.
Conclusion:
* Option B:Correct-All leaf devices will have L2 VXLAN gateways.
* Option C:Correct-All leaf devices will have L3 VXLAN gateways.
* Option E:Correct-Spine devices will not act as VXLAN gateways
NEW QUESTION # 27

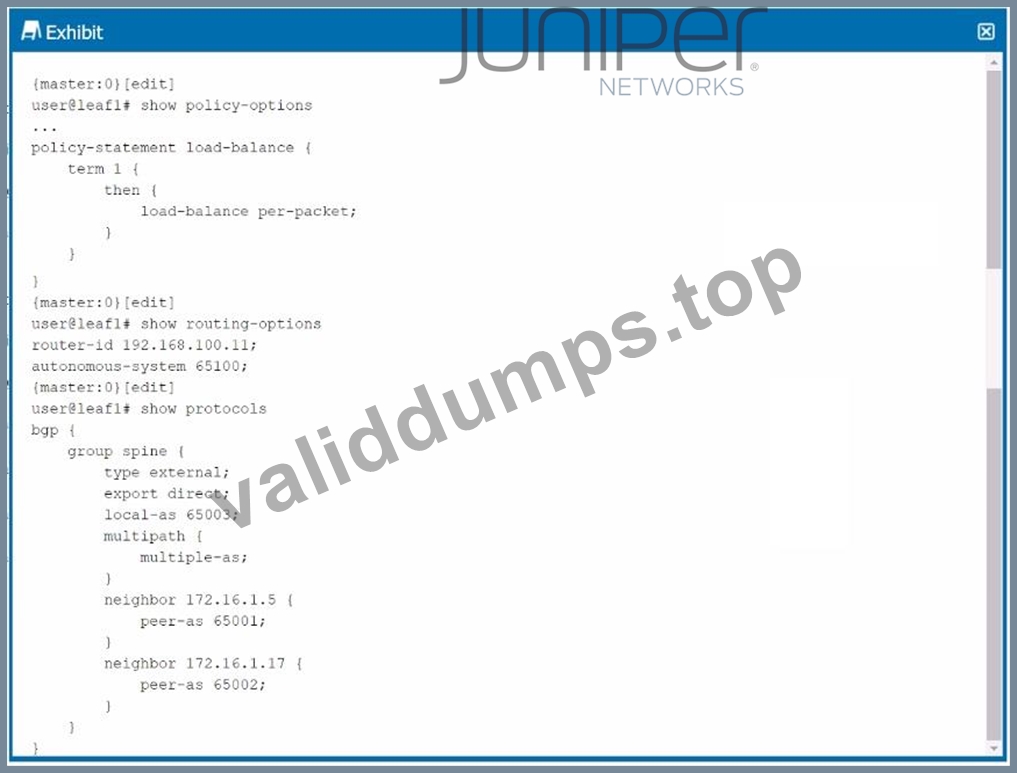

You are deploying an IP fabric using EBGP and notice that your leaf devices areadvertising and receiving all the routes. However, the routes are not installed in the routing table and are marked as hidden.
Which two statements describe how to solve the issue? (Choose two.)
- A. You need to configure loops 2.
- B. You need to configure multipath multiple-as.
- C. You need to configure as-override.
- D. You need to configure a next-hop self policy.
Answer: B,D
NEW QUESTION # 28
Exhibit.

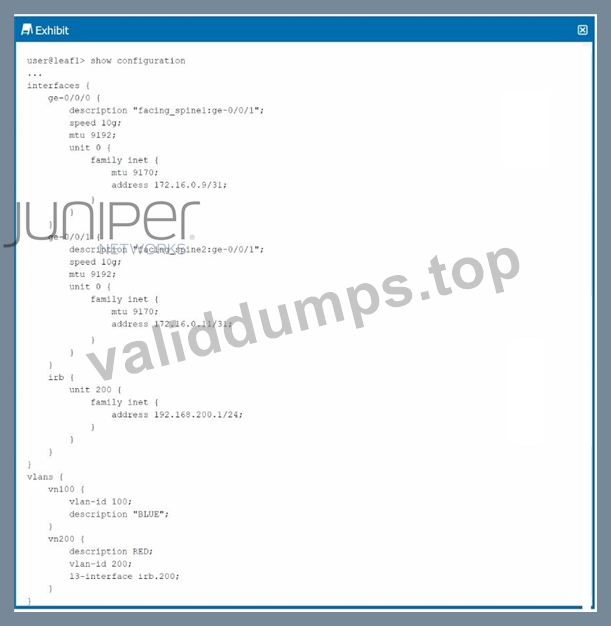

Host A is connected to vlan 100 on lead. Host B is connected to vlan 200 on leaf1. Host A and Host B ate unable to communicate. You have reviewed the touting and your hosts have the correct default route (.1) Referring to the exhibit, which two commands will solve the problem? (Choose two.)
- A. set vlans vn100 13-interface irb.100
- B. set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10
- C. delete vlans vn200 13-interface irb.200
- D. set interfaces irb unit 100 family inet address 192-168.100.1
Answer: A,B
Explanation:
In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.
Step-by-Step Analysis:
* VLAN Assignment:
* The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration.
However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.
Command to solve this:
set vlans vn100 13-interface irb.100
* Static Route Configuration:
* For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.
Command to solve this:
set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10
Explanation of Incorrect Options:
* Option A (delete vlans vn200 13-interface irb.200): This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.
* Option B (set interfaces irb unit 100 family inet address 192-168.100.1): This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1
/24). This could create a misconfiguration, leading to routing issues.
Data Center References:
For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.
Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.
This detailed analysis reflects best practices as noted in standard data center design and network configuration guides.
NEW QUESTION # 29

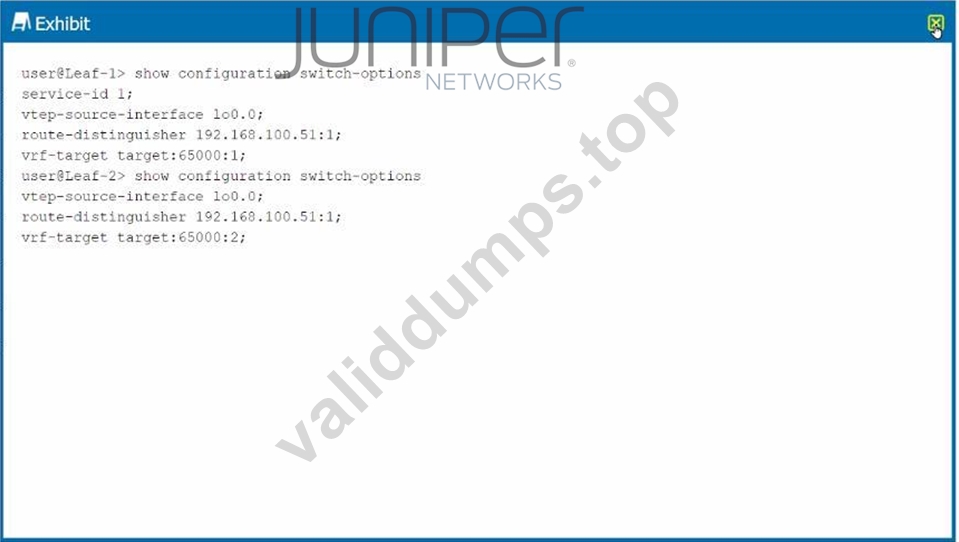

Exhibit.
Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.
- A. Configure the setswitch-options service-id 1 parameter on Leaf-2.
- B. Configure the setswitch-options route-distinguisher i92.168.100.50:i parameter on Leaf-1.
- C. Configure the setswitch-options vtep-source-interface irb.0parameter on Leaf-1.
- D. Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)
- E. Configure the set switch-options vrf-target target:65000:l parameteron Leaf-2.
Answer: A,E
Explanation:
* Issue Analysis:
* The problem in the exhibit suggests a mismatch in configuration parameters between Leaf-1 and Leaf-2, leading to communication issues between hosts connected to these leaf devices.
* Configuration Mismatches:
* Service-ID:Leaf-1 has service-id 1 configured, while Leaf-2 does not have this parameter. For consistency and proper operation, the service-id should be the same across both leaf devices.
* VRF Target:Leaf-1 is configured with vrf-target target:65000:1, while Leaf-2 is configured with vrf-target target:65000:2. To allow proper VRF import/export between the two leafs, these should match.
* Corrective Actions:
* C. Configure the set switch-options vrf-target target:65000:1 parameter on Leaf-2:This aligns the VRF targets between the two leaf devices, ensuring they can correctly import and export routes.
* E. Configure the set switch-options service-id 1 parameter on Leaf-2:This ensures that both Leaf-1 and Leaf-2 use the same service ID, which is necessary for consistency in the EVPN- VXLAN setup.
Data Center References:
* Correct configuration of VRF targets and service IDs is critical in EVPN-VXLAN setups to ensure that routes and services are correctly shared and recognized between different devices in the network fabric.
NEW QUESTION # 30
You are using E8GP peering in an underlay IP fabric. Which two statements are correct in this scenario?
(Choose two.)
- A. Every leaf node has one peering session to every spine node.
- B. Every leaf node has a peering session to every other leaf node.
- C. EBGP peering requires an IGP protocol tor adjacency establishment.
- D. EBGP peering does not require an IGP protocol tor adjacency establishment.
Answer: A,D
Explanation:
* Understanding EBGP in an IP Fabric:
* EBGP (External Border Gateway Protocol) is commonly used in IP fabrics to establish peering between routers, such as leaf and spine nodes, without relying on an Interior Gateway Protocol (IGP) like OSPF or IS-IS.
* IGP Requirement for EBGP:
* Option B:EBGP peering does not require an IGP for adjacency establishment. This is because EBGP peers are typically directly connected, and BGP establishes its own sessions without needing an underlying IGP.
* Leaf-to-Spine Peering:
* Option C:In a typical IP fabric, each leaf node establishes an EBGP session with every spine node. This ensures full connectivity between leaves and spines, facilitating efficient routing and forwarding within the fabric.
Conclusion:
* Option B:Correct-EBGP does not require an IGP for establishing peering sessions.
* Option C:Correct-Each leaf node peers with every spine node, which is a standard practice in IP fabrics to ensure connectivity and redundancy.
NEW QUESTION # 31
You are deploying a new network lo support your Al workloads on devices that support at least 400 Gbps Ethernet. There is no requirement for any Layer 2 VLANs in this network. Which network architecture would satisfy this requirement?
- A. an IP fabric with an EVPN-VXLAN architecture
- B. an IP fabric using PIM-SM to signal VXLAN overlay
- C. an IP fabric using the EVPN-MPLS architecture
- D. an IP fabric using EBGP
Answer: D
Explanation:
* Requirements for AI Workloads:
* The scenario requires a network that supports at least 400 Gbps Ethernet and does not require Layer 2 VLANs. This setup is well-suited for a pure Layer 3 network, which can efficiently route traffic between devices without the overhead or complexity of maintaining Layer 2 domains.
* Choosing the Right Network Architecture:
* Option D:An IP fabric using EBGP (External BGP) is ideal for this scenario. In a typical IP fabric, EBGP is used to handle routing between spine and leaf switches, creating a scalable and efficient network. Since there is no need for Layer 2 VLANs, the pure IP fabric design with EBGP provides a straightforward and effective solution.
* Options A, B, and Cinvolve more complex architectures (like VXLAN or EVPN), which are unnecessary when there's no requirement for Layer 2 overlays or VLANs.
Conclusion:
* Option D:Correct-An IP fabric with EBGP is the most suitable and straightforward architecture for a network that needs to support high-speed AI workloads without Layer 2 VLANs.
NEW QUESTION # 32
You are asked to deploy 100 QFX Series devices using ZTP Each OFX5120 requires a different configuration. In this scenario, what are two components that you would configure on the DHCP server?
(Choose two.)
- A. the management IP address for each OFX5120
- B. the IP address of the FTP server
- C. the MAC address for each OFX5120
- D. the MAC address of the FTP server
Answer: A,C
Explanation:
* Zero Touch Provisioning (ZTP):
* ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.
g., FTP, HTTP).
* DHCP Server Configuration:
* Option B:The DHCP server needs to know theMAC address for each QFX5120to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.
* Option D:Themanagement IP address for each QFX5120must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.
Conclusion:
* Option B:Correct-MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.
* Option D:Correct-Management IP addresses are essential for network communication during ZTP.
NEW QUESTION # 33

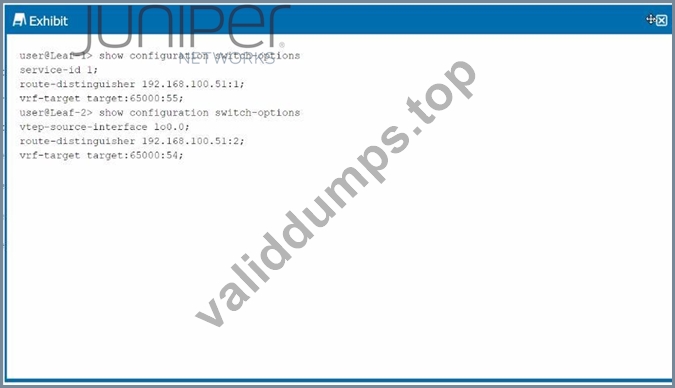

Exhibit.
Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.
Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)
- A. Configure the set switch-options service-id 1 parameter on Leaf-2.
- B. Configure the setswitch-options vtep-source-interface100. 0 parameter on Leaf-1.
- C. Configure the setswitch-options route-distinguisher 192.168.100.51:2 parameter on Leaf-1.
- D. Configure the set switch-options vrf-target target: 65000:55 parameter on Leaf-2.
Answer: A,D
Explanation:
* Review of the Exhibit:
* The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.
* Service-ID Consistency:
* The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.
* VRF Target Consistency:
* The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.
Conclusion:
* Option B:Correct-Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.
* Option D:Correct-The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.
NEW QUESTION # 34
You are asked to implement VXLAN group-based policies (GBPs) in your data center. Which two statements are correct in (his scenario? (Choose two.)
- A. VXLAN GBP uses scalable group tags thatmust be configured statically on each switch and activated through 802.1X.
- B. VXLAN GBP ensures consistent application of BGP groups throughout the network.
- C. VXLAN GBP uses scalable group tags that may be configured on a RADIUS server and pushed to the switch through 802.1X.
- D. VXLAN GBP ensures consistent application of security group policies throughout the network.
Answer: C,D
Explanation:
* VXLAN Group-Based Policies (GBP):
* VXLAN Group-Based Policies are used to apply security policies consistently across the network. These policies are often tied to user or device identities rather than static IP addresses, which allows for more dynamic and scalable security management.
* Scalable Group Tags via RADIUS and 802.1X:
* Option B:VXLAN GBP can use scalable group tags configured on a RADIUS server, which are then pushed to network devices through 802.1X. This allows for centralized and automated policy application based on user or device identity.
* Consistent Security Policy Application:
* Option C:GBP ensures that security policies are consistently applied across the network, regardless of where a user or device connects. This consistency is crucial in environments where security policies must follow the user or device.
Conclusion:
* Option B:Correct-Group tags can be configured on a RADIUS server and pushed via 802.1X, enabling centralized policy management.
* Option C:Correct-GBP ensures consistent application of security policies, which is essential for maintaining security across a dynamic network environment.
NEW QUESTION # 35
You are implementing seamless stitching between two data centers and have a proposedconfiguration for a border leafdevice.
In this scenario, which two statements are correct? {Choose two.)
- A. The ESI must match in both data centers.
- B. The translation-vni must match in both data centers.
- C. The ESI must be different in each data center.
- D. The translation-vni must be different in each data center.
Answer: A,D
Explanation:
* Understanding Seamless Stitching:
* Seamless stitching is used in EVPN to interconnect two data centers, allowing for consistent Layer 2 and Layer 3 connectivity across them. This is often achieved by translating VNIs (Virtual Network Identifiers) between the data centers.
* Translation-VNI:
* Option B:The translation VNI must be different in each data center to ensure that traffic can be correctly routed and distinguished as it crosses between the data centers. This differentiation helps to maintain the integrity of the traffic flows and prevents any potential overlap or conflict in VNIs.
* Ethernet Segment Identifier (ESI):
* Option D:The ESI must match in both data centers to ensure that the same Ethernet segment (which could be multihomed) is recognized consistently across the data centers. Matching ESIs are crucial for maintaining a unified view of the Ethernet segment across the interconnected fabric.
Conclusion:
* Option B:Correct-Translation VNIs must be unique to each data center for proper traffic distinction.
* Option D:Correct-Matching ESIs are necessary to maintain consistent Ethernet segment identification across both data centers.
NEW QUESTION # 36
Exhibit.

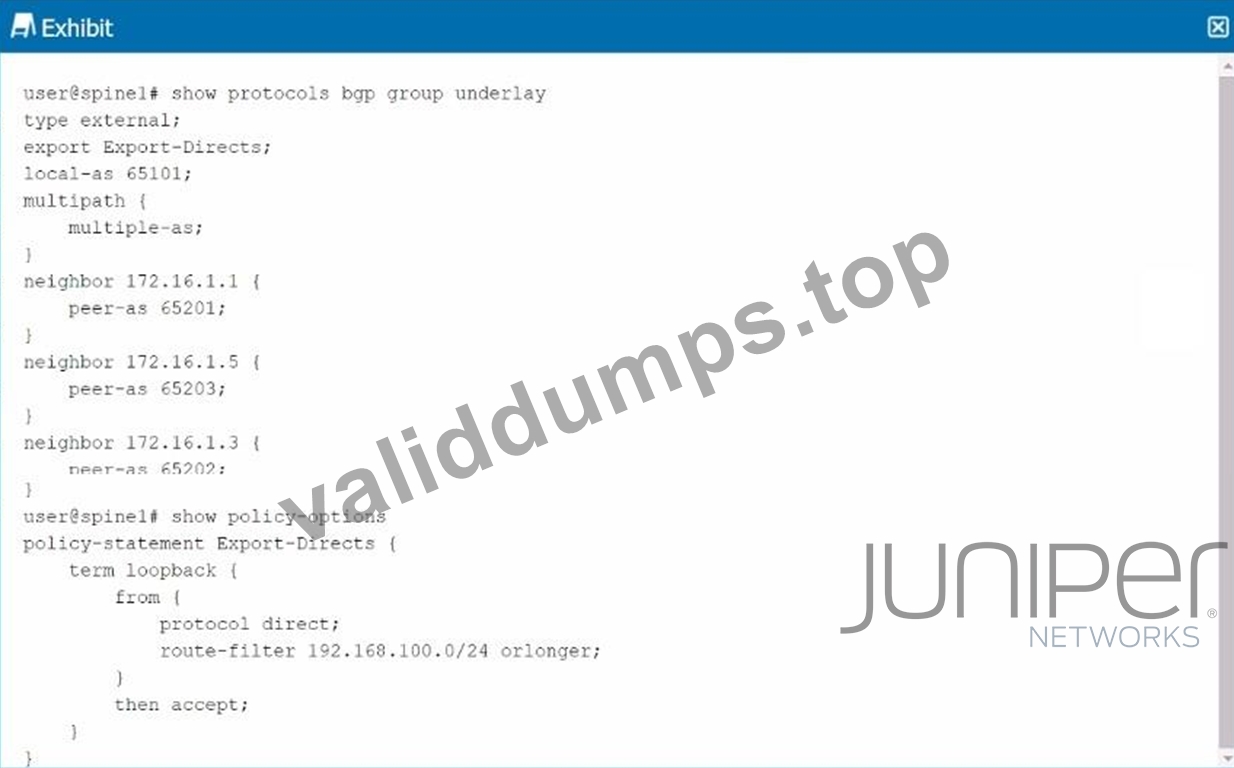

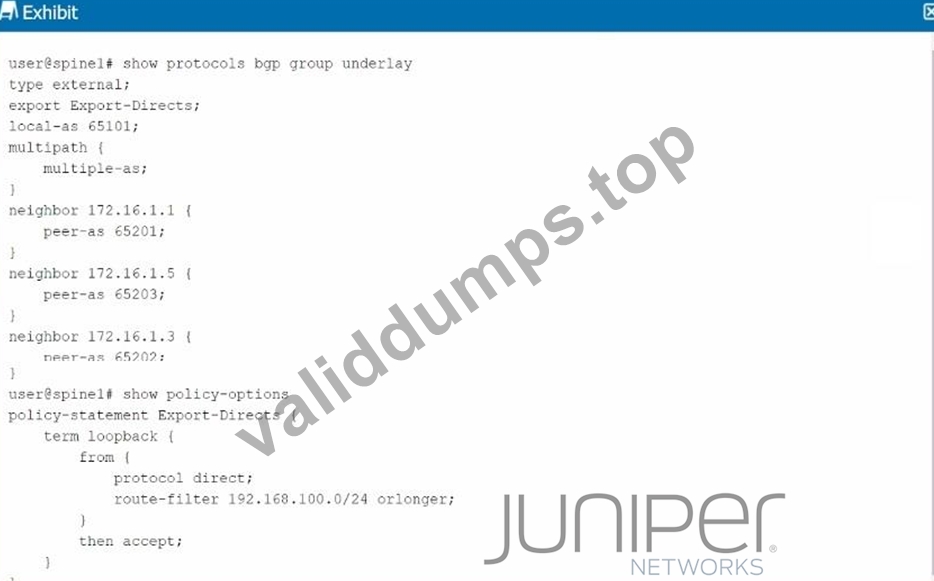

Referring to the exhibit, the spinel device has an underlay BGP group that is configured to peer with its neighbors' directly connected interfaces. Which two statements are true in this scenario? (Choose two.)
- A. Load balancing for the underlay is not configured correctly.
- B. The multihop statement is required to establish the underlay BGP sessions.
- C. Load balancing for the underlay is configured correctly.
- D. The multihop statement is not required to establish the underlay BGP sessions.
Answer: B,C
NEW QUESTION # 37
You want to provide a OCI that keeps each data center routing domain isolated, while also supporting translation of VNIs. Which DCI scheme allows these features?
- A. over the top (OTT) with proxy gateways
- B. over the top (OTT) with VNI translation enabled
- C. VXLAN stitching
- D. MPLS DCI label exchange
Answer: C
Explanation:
* Understanding DCI (Data Center Interconnect) Schemes:
* DCI schemes are used to connect multiple data centers, enabling seamless communication and resource sharing between them. The choice of DCI depends on the specific requirements, such as isolation, VNI translation, or routing domain separation.
* VXLAN Stitching:
* VXLAN stitching involves connecting multiple VXLAN segments, allowing VNIs (VXLAN Network Identifiers) from different segments to communicate with each other while maintaining separate routing domains.
* This approach is particularly effective for keeping routing domains isolated while supporting VNI translation, making it ideal for scenarios where you need to connect different data centers or networks without merging their control planes.
* Other Options:
* A. MPLS DCI label exchange:This option typically focuses on MPLS-based interconnections and does not inherently support VNI translation or isolation in the context of VXLAN.
* B. Over the top (OTT) with VNI translation enabled:This could support VNI translation but does not inherently ensure routing domain isolation.
* D. Over the top (OTT) with proxy gateways:This typically involves using external gateways for traffic routing and may not directly support VNI translation or isolation in the same way as VXLAN stitching.
Data Center References:
* VXLAN stitching is a powerful method in multi-data center environments, allowing for flexibility in connecting various VXLAN segments while preserving network isolation and supporting complex interconnect requirements.
NEW QUESTION # 38
Exhibit.
Referring to the exhibit, which statement Is true?
- A. An ERB architecture is being used.
- B. An OTT architecture is being used.
- C. A PBB-EVPN architecture is being used.
- D. A CRB architecture is being used.
Answer: A
Explanation:
* Understanding Network Architectures:
* ERB (Edge Routed Bridging) architecture involves routing at the network's edge (leaf nodes), while traffic between leaf nodes is switched. This is commonly used in VXLAN-EVPN setups.
* Analysis of the Exhibit:
* The exhibit shows configurations related to routing instances, VXLAN, and VLANs, with VNIs being used for each VLAN. This setup is characteristic of an ERB architecture where each leaf device handles Layer 3 routing for its connected devices.
Conclusion:
* Option B:Correct-The configuration shown corresponds to an ERB architecture where routing occurs at the network's edge (leaf devices).
NEW QUESTION # 39
Exhibit.
You are troubleshooting an IP fabric (or your data center. You notice that your traffic is not being load balanced to your spine devices from your leaf devices. Referring to the configuration shown in the exhibit, what must be configured to solve this issue?
- A. The multipast multiple -as configuration must be configured for each peer in the BGP spine group.
- B. The load-balance policy must be applied as an export policy to your BGP
- C. The load-balance policy must have a from statement that matches on protocol bgp.
- D. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.
Answer: D
Explanation:
Step 1: Understand the Configuration in the Exhibit
The exhibit provides three configuration snippets from a leaf device (user@leaf#):
* Policy Options:
user@leaf# show policy-options
policy-statement load-balance {
term 1 {
then {
load-balance per-packet;
}
}
}
* A policy named load-balance is defined, which applies the load-balance per-packet action. In Juniper terminology, per-packet actually means per-flow load balancing (a common point of confusion). This policy is intended to enable load balancing across multiple paths.
* Routing Options:
user@leaf# show routing-options
router-id 192.168.100.11;
autonomous-system 65100;
* The router ID is set to 192.168.100.11, and the autonomous system (AS) number is 65100. There' s no mention of applying the load-balance policy here, which is a clue to the issue.
* BGP Configuration:
user@leaf# show protocols
bgp {
group spine {
type external;
export direct;
local-as 65003;
multipath {
multiple-as;
}
neighbor 172.16.1.5 {
peer-as 65001;
}
neighbor 172.16.1.17 {
peer-as 65002;
}
}
}
* BGP is configured with an external group spine, where the leaf device (local AS 65003) peers with spine devices (AS 65001 and 65002).
* The multipath multiple-as statement is enabled, which allows BGP to install multiple paths for the same prefix in the routing table, even if the paths come from different AS numbers. This is a prerequisite for load balancing in a multi-AS environment like an IP fabric.
* The export direct policy is applied, which likely exports directly connected routes to the spine devices.
Step 2: Identify the Problem
The issue is that traffic from the leaf to the spine devices is not being load-balanced, despite the presence of a load-balance policy and BGP multipath. For load balancing to work in this scenario:
* BGP multipath ensures multiple paths are installed in the routing table.
* The load-balance per-packet policy is meant to distribute traffic across those paths.
* However, the load-balance policy is defined but not applied anywhere in the configuration shown. For load balancing to take effect, the policy must be applied in the correct context.
Step 3: Evaluate the Options
Let's go through each option to determine the correct solution:
* A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.
* In Junos, to enable load balancing across multiple paths for forwarding, the load-balance policy must be applied at the forwarding table level. This is done under the routing-options hierarchy using the forwarding-table export statement. For example:
set routing-options forwarding-table export load-balance
* This ensures that the load-balancing policy is applied to the forwarding table, allowing traffic to be distributed across multiple equal-cost paths installed by BGP.
* B. The multipath multiple-as configuration must be configured for each peer in the BGP spine group.
* The multipath multiple-as statement is already configured under the spine group, and it applies to all neighbors in that group (172.16.1.5 and 172.16.1.17). There's no need to configure it per peer, as the group-level configuration is sufficient. This option is incorrect because the required setting is already in place.
* C. The load-balance policy must be applied as an export policy to your BGP.
* Applying the load-balance policy as a BGP export policy (e.g., export load-balance under the BGP group) would affect the routes advertised to the spine devices. However, the load-balance per-packet action is a forwarding action, not a route advertisement action. Applying it as a BGP export policy would not achieve the desired load balancing for traffic forwarding and is incorrect.
* D. The load-balance policy must have a from statement that matches on protocol bgp.
* The load-balance policy currently applies the load-balance per-packet action unconditionally (no from statement). Adding a from protocol bgp condition would make the policy apply only to BGP routes, but this is unnecessary in this context. The policy needs to be applied to the forwarding table to affect traffic, not modified with a from statement. This option doesn't address the core issue of applying the policy.
Step 4: Determine the Correct Answer
The key issue is that the load-balance policy is defined but not applied. For load balancing to work, it must be applied to the forwarding table under routing-options. This matchesOption A:
* A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.
Step 5: Provide Official Juniper Documentation Reference
Since I don't have direct access to Juniper's proprietary documents, I can provide an explanation based on standard Junos documentation practices and publicly available resources, such as the Juniper TechLibrary, which is the official source for Junos configuration guides.
In Juniper's official documentation, specifically in theJunos OS Routing Protocols and Policies Configuration Guide, the process for enabling load balancing is described as follows:
* Load Balancing in Junos: To enable per-flow load balancing across multiple paths, you must define a policy with the load-balance per-packet action and apply it to the forwarding table. The relevant configuration hierarchy is:
routing-options {
forwarding-table {
export <policy-name>;
}
}
* Explanation from Documentation: The load-balance per-packet action (which performs per-flow balancing) requires the policy to be applied at the forwarding-table level to influence how traffic is distributed across multiple paths in the forwarding table. Without this, even if BGP installs multiple paths (via multipath), the forwarding engine will not load-balance traffic.
This aligns with the JNCIP-DC exam objectives, which include understanding how to configure and troubleshoot load balancing in an IP fabric, such as applying policies for traffic distribution.
NEW QUESTION # 40
Exhibit.
Referring to the exhibit, Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) in a data center that uses an ERB architecture. What do you determine from the output?
- A. The traffic is failing because load balancing is not configured correctly.
- B. Host1 and Host2 are directly connected to leaf1.
- C. The irb.20 interface is not configured on leaf1.
- D. The traffic is entering the VXLAN tunnel.
Answer: D
Explanation:
Understanding the Problem:
* Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.
Analysis of the Exhibit:
* The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).
Conclusion:
* Option B:Correct-The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.
NEW QUESTION # 41
Exhibit.
Referring to the exhibit, when Host A sends an ARP request for Host B's IP address, which Junos feature does leaf1require to send an ARP response back to Host A without having to send a broadcast frame over the fabric?
- A. proxy ARP
- B. GARP
- C. DAD
- D. proxy NDP
Answer: A
Explanation:
* Scenario Overview:
* In the exhibit, Host A is trying to resolve Host B's IP address (10.10.1.2) through ARP (Address Resolution Protocol). Normally, an ARP request would be broadcasted over the network, and the host owning the IP address (Host B) would respond.
* Role of Proxy ARP:
* Option A:Proxy ARPallows a router or switch (in this case, leaf1) to respond to ARP requests on behalf of another host. Leaf1, knowing the MAC address of Host B through the EVPN MAC advertisement, can reply to Host A's ARP request directly without broadcasting the request across the entire network fabric. This feature reduces unnecessary traffic and increases network efficiency.
Conclusion:
* Option A:Correct-Proxy ARP enables leaf1 to respond to Host A's ARP request for Host B's IP without broadcasting over the IP fabric, thus providing the ARP response locally.
NEW QUESTION # 42
Exhibit.
Referring to the exhibit, the spinel device has an underlay BGP group that is configured to peer with its neighbors' directly connected interfaces. Which two statements are true in this scenario? (Choose two.)
- A. Load balancing for the underlay is not configured correctly.
- B. The multihop statement is not required to establish the underlay BGP sessions.
- C. The multihop statement is required to establish the underlay BGP sessions.
- D. Load balancing for the underlay is configured correctly.
Answer: B,D
Explanation:
* Understanding BGP Configuration in the Exhibit:
* The exhibit shows a BGP configuration on spine1 with a group named underlay, configured to peer with directly connected interfaces of other devices in the network.
* Multipath multiple-as:This statement allows the router to install multiple paths in the routing table for routes learned from different ASes, facilitating load balancing.
* Key Statements:
* A. The multihop statement is not required to establish the underlay BGP sessions:In this case, the BGP peers are directly connected (as indicated by their neighbor IP addresses), so the multihop statement is unnecessary. Multihop is typically used when BGP peers are not directly connected and packets need to traverse multiple hops.
* D. Load balancing for the underlay is configured correctly:The multipath { multiple-as; } statement in the configuration enables load balancing across multiple paths from different autonomous systems, which is appropriate for underlay networks in data center fabrics.
* Incorrect Statements:
* C. The multihop statement is required to establish the underlay BGP sessions:This is incorrect because the peers are directly connected, making the multihop statement unnecessary.
* B. Load balancing for the underlay is not configured correctly:This is incorrect because the configuration includes the necessary multipath settings for load balancing.
Data Center References:
* BGP configurations in EVPN-VXLAN underlay networks are crucial for ensuring redundancy, load balancing, and efficient route propagation across the data center fabric.
NEW QUESTION # 43
......
Juniper JN0-683 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
JN0-683 Study Guide Brilliant JN0-683 Exam Dumps PDF: https://www.validdumps.top/JN0-683-exam-torrent.html
Passing Juniper JN0-683 Exam Using 2026 Practice Tests: https://drive.google.com/open?id=1wCoDsbxRu6DAVWiZum3BQvAp8PEAx8Ed
